VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Palmetto Bay, FL | TruePane Windows & Doors

The VLX 100 Double Swing French Door is a paired aluminum door system built for homeowners in Palmetto Bay who want wide, symmetrical openings without the sagging, warping, or sticking that plagues lesser doors. This is the door you choose when the opening is 8 feet wide and every inch of it needs to work, every day, for decades. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you get the factory product with installation that protects the warranty. We’ve installed these across Palmetto Bay, from waterfront properties near the bay to newer construction east of Old Cutler Road. Call (386) 200-9224 to schedule a free measurement.

Call (386) 200-9224

Product Overview - VLX 100 Double Swing / French Door

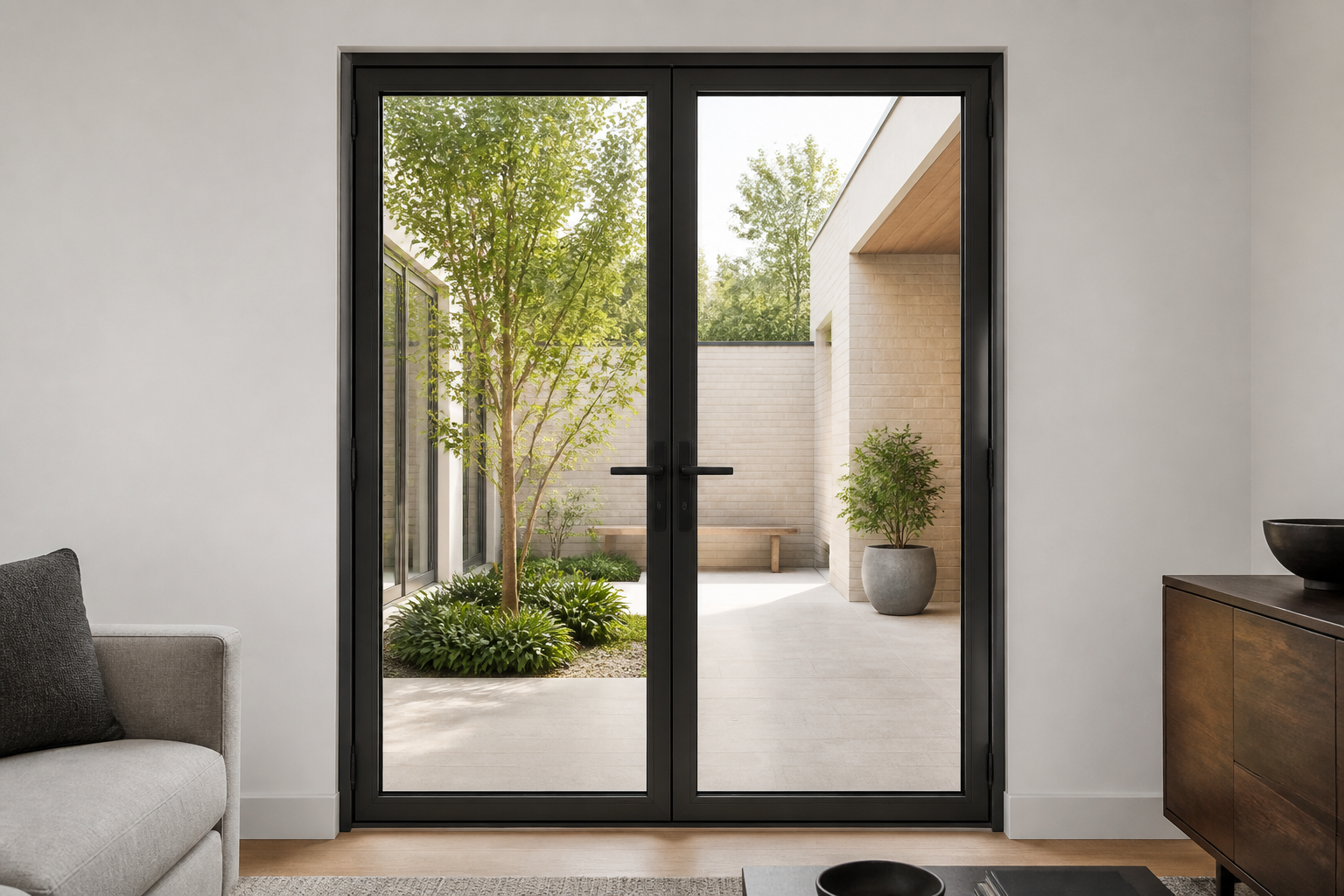

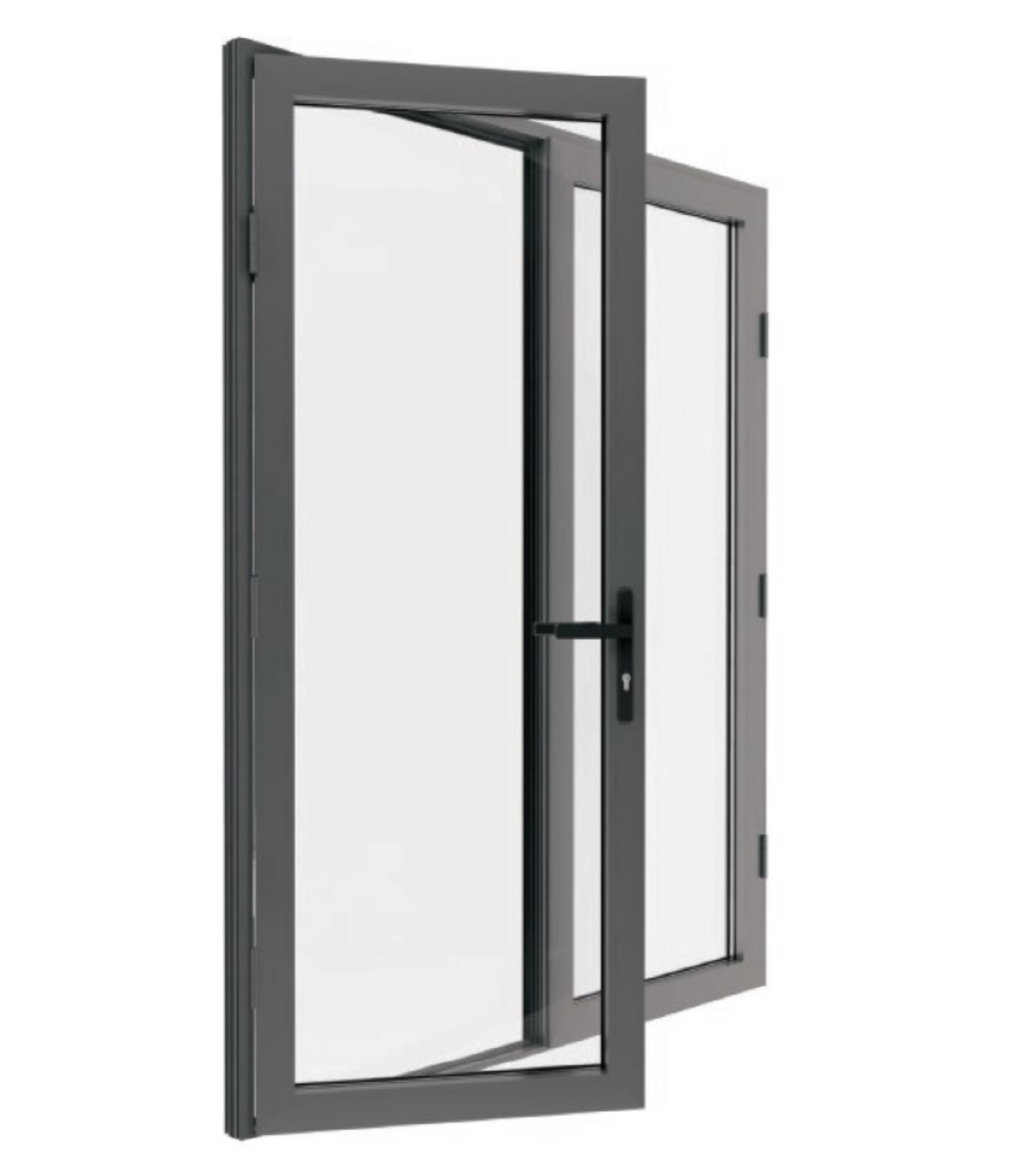

The VLX 100 is a paired aluminum French door system with symmetrical sightlines, which in plain terms means the left and right doors look identical from both inside and out. There’s no clunky “active” door that steals visual weight from the “passive” one. Both panels read clean, with the same stile widths and the same glass proportions. For an architect or a homeowner in Palmetto Bay designing around a pool view or a back patio, that symmetry is the whole point.

But beauty without mechanics is just a liability. The flush threshold on this door means there’s no raised track to trip over, which matters when you’re carrying a tray of food out to the lanai or when a grandparent in a wheelchair visits. It sits nearly level with the floor, keeping the transition smooth while still sealing against wind-driven rain. The multi-point lock hardware engages along the full height of the door, not just at one latch point. When you close the VLX 100, you feel it lock, and the door doesn’t flex or bow at the center seam the way single-point latch French doors often do.

These doors are built from extruded aluminum, which is the material that makes sense in South Florida. Aluminum doesn’t absorb humidity, doesn’t swell in August, and doesn’t rot. The 0.098-inch wall thickness gives the frame structural stiffness that thinner, residential-grade aluminum simply lacks. Buyers choose this series because it fills a wide opening with a door that still feels solid at 96 inches, and because it does all of that while looking substantially more expensive than it costs. In Palmetto Bay, where houses blend Florida modern and updated ranch styles, we see the VLX 100 spec’d repeatedly because it plays well with both.

Technical Specifications

Here’s what you’re actually buying, spec by spec, so you can compare fairly against other aluminum French door lines:

• Frame material: Extruded aluminum with 0.098-inch wall thickness, 2.56-inch profile width
• Maximum opening span: Up to 96 inches wide, suitable for large double-door openings
• Glass types: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Frame finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen option: Retractable screen or no screen

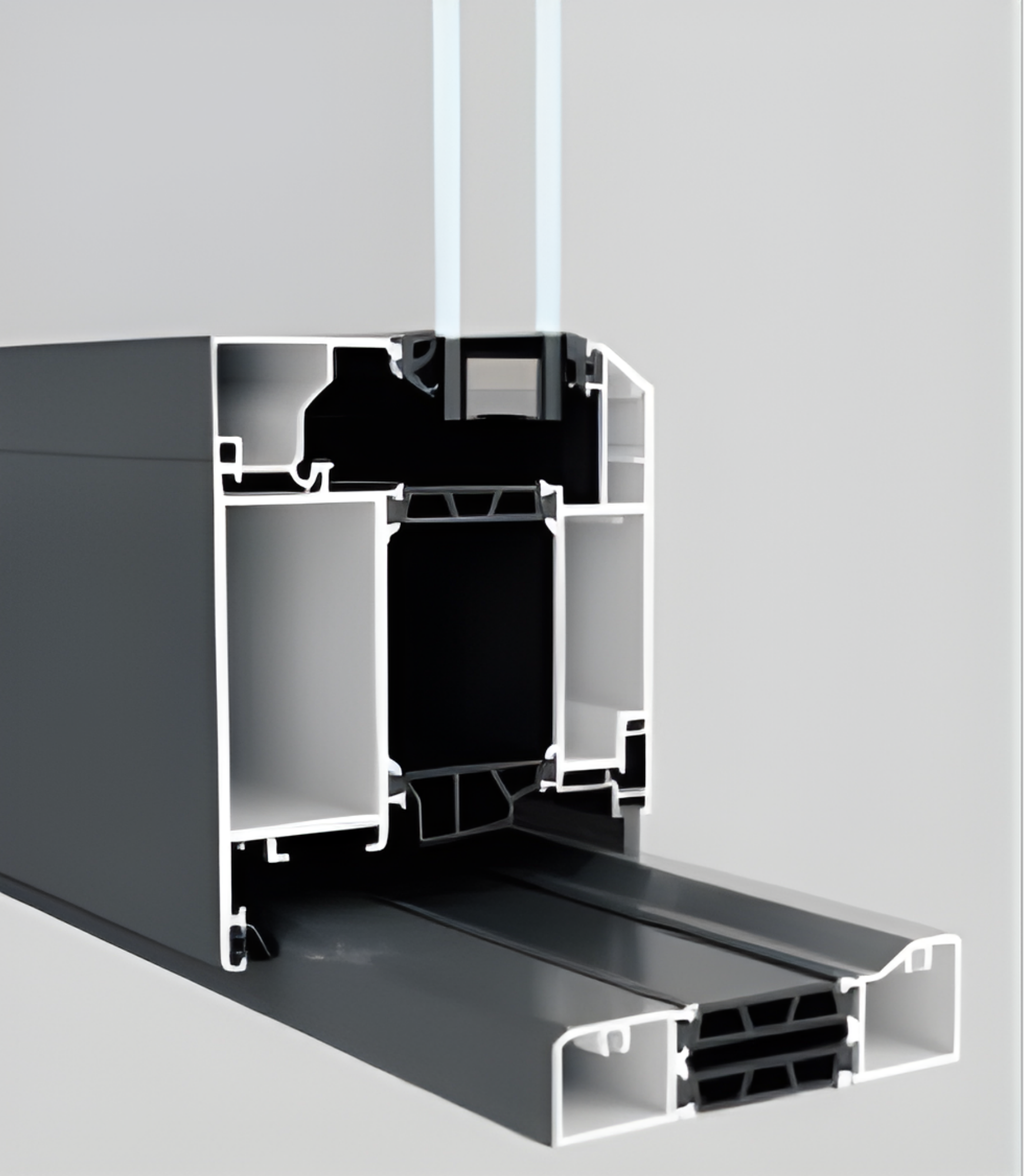

• Threshold: Flush, low-profile design with perimeter seal
• Hardware: Multi-point locking along the full door height
• Thermal performance: Thermal break construction, NFRC-rated energy performance
• Installation standard: AAMA 2400/2410 compliance with AAMA 812-approved sealant

Performance Features

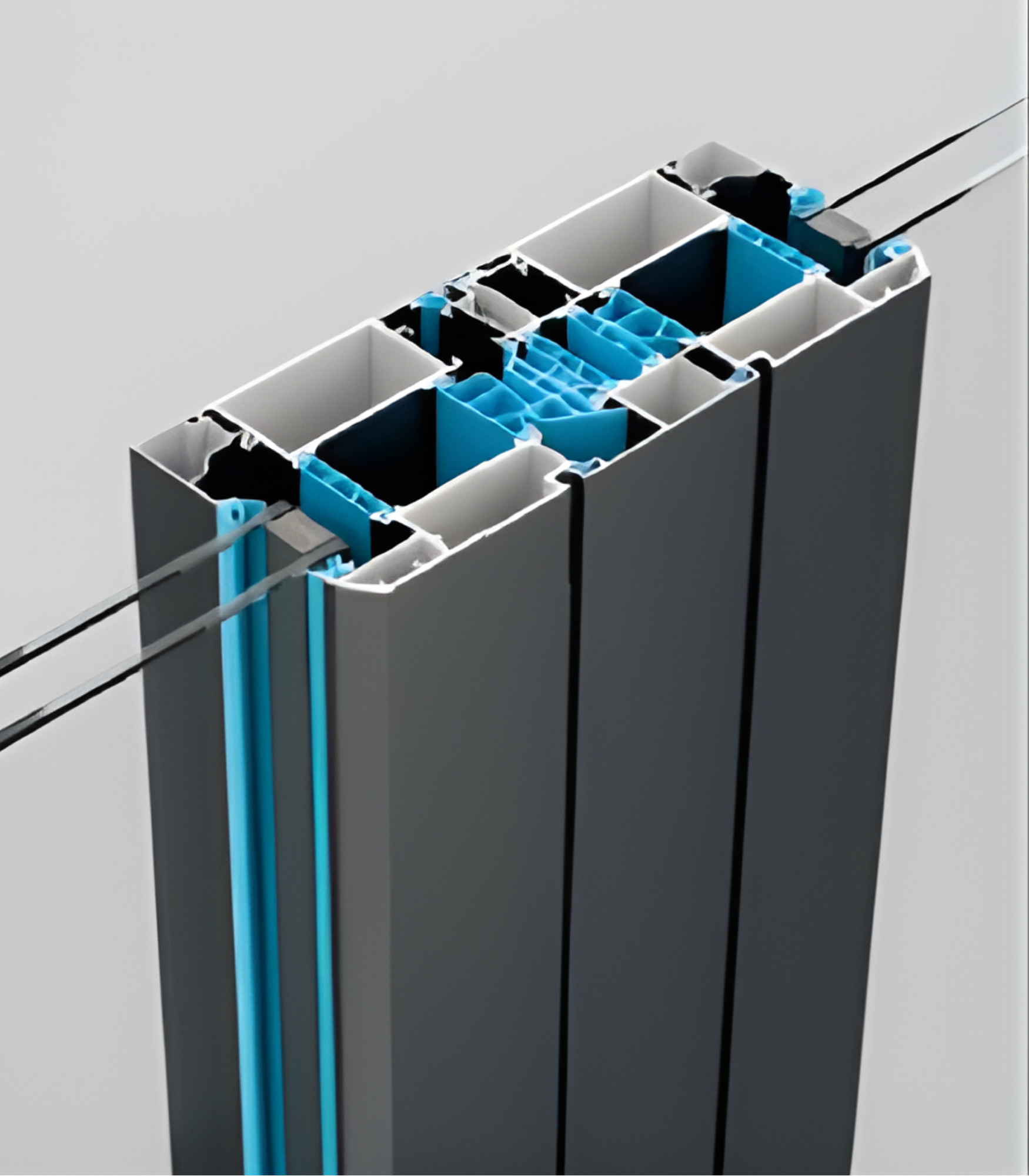

Thermal Efficiency - The VLX 100 uses a thermal break, which is an insulating barrier between the interior and exterior aluminum faces. Without it, aluminum conducts heat straight through the frame. With it, the door earns its NFRC ratings and keeps Palmetto Bay’s midday sun from turning the door frame into a radiator aimed at your air-conditioned living room.

Acoustic Performance - Laminated glass is the option to choose if you live within earshot of traffic on US-1 or the occasional evening noise from neighbors. The interlayer between the glass panes dampens sound transmission noticeably, which makes a real difference in bedrooms or home offices off the patio.

Airtightness & Weather Seal - Every perimeter joint on this door gets sealed with AAMA 812 compliant low-expansion foam when TruePane installs it. That’s not the canned stuff from a home store. This foam expands enough to fill the gap, but not enough to bow the frame, so the door stays square and the seal stays continuous.

Waterproofing - The flush threshold is designed to shed water, not trap it, and the weather gaskets run full length on both panels. In Palmetto Bay, where summer thunderstorms drop two inches in an hour, the wrong threshold detail turns a pretty door into a flood path. This one’s engineered to keep the water outside where it belongs.

Wind Resistance - The VLX 100 is wind-load rated for local climate requirements, which in Miami-Dade means it’s been tested for the kind of wind speeds we actually get, not just the ones a national catalog assumes. The 0.098-inch wall thickness isn’t a random number. It’s what’s required to keep a 96-inch wide double door from flexing under a hurricane-pressure differential. Impact-resistant laminated glass is available if code requires it or if you simply want it.

Security & Hardware - The multi-point lock runs along the full height of the active panel, which means someone can’t just pop the top of the door open by prying at the corner. The door is secured at multiple points, and the reinforced aluminum frame resists being spread. For a door that opens onto a side yard or back patio in Palmetto Bay, that’s real peace of mind.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black and Pure White are the most specified in Palmetto Bay right now, with black framing serving modern farmhouse and contemporary builds, and white working on the Florida ranch homes and coastal styles that dominate west of 87th Avenue. Anodized Silver has a metallic sheen that suits mid-century and industrial aesthetics. Bronze runs warmer, almost brown-gold, and pairs well with natural stone and wood accents. Champagne is a softer metallic that we often recommend for traditional homes with warmer exterior palettes. Teak Wood is a textured wood-grain aluminum finish that gives you the look of wood at the patio without the maintenance. It’s a popular choice for houses near the bay where salt air makes real wood a maintenance liability.

On the glass side, Clear is the default: maximum light transmission, nothing between you and the view. Frosted and Obscure glass are for doors where you want light but not sightlines, like a French door between a master bedroom and a bathroom or a patio door facing a close neighbor. Low-E is the energy performer, reflecting infrared heat while remaining visually clear, which matters when the western sun hammers the back of the house every afternoon. Tempered glass is standard safety glass that crumbles rather than shatters into shards. Laminated glass layers a polymer interlayer between two panes, giving you impact resistance and better sound damping. For Palmetto Bay homes in wind-borne debris zones, laminated is the code-friendly upgrade we discuss on nearly every quote.

Installation by TruePane Windows & Doors in Palmetto Bay

Here’s the part no manufacturer’s website will tell you straight: the best door in the world fails if the installation is sloppy. The VLX 100 carries a factory warranty, and that warranty is only as good as the installation underneath it. TruePane Windows & Doors installs every VLX 100 Double Swing French Door to AAMA 2400/2410 standard, which is the construction industry’s recognized benchmark for window and door installation in residential and light commercial applications. That’s not a marketing bullet point. It’s a checklist of specific installation practices.

Every job starts with a pre-install inspection. We measure the rough opening in three places, check the floor for level, and confirm the header above the opening is straight. If the opening is 1/4 inch out of level, we correct the opening before the door ever arrives, because a French door with two 48-inch panels will bind on a floor that is anything but true. Once the frame is set, we check level, plumb, and square on both jambs and the head. We shim behind each hinge point, not just at the corners, because hinge points are where the door’s weight concentrates. The perimeter gets sealed with AAMA 812 approved low-expansion foam on every joint. Then the exterior gets a continuous seal against water penetration. We perform a water test after installation. We clean up the job site. We walk the door with you and show you how the multi-point lock engages, how the flush threshold drains, and what proper maintenance looks like.

In Palmetto Bay specifically, the installation details matter because of humidity and rainfall. Moisture that finds its way behind an improperly sealed frame doesn’t just disappear. It sits in the wall cavity and does what moisture does in Florida. The AAMA 812 sealant detail on perimeter joints is the barrier that keeps that from happening. And if you’re replacing an existing French door, we pull the old frame completely rather than installing a pocket insert. You want to see the opening, fix any hidden rot, and start clean.

TruePane Windows & Doors is the authorized ViewLux partner for this area, which means we stock the line, we know the product, and we install it the way the manufacturer intends the warranty to be honored. Call (386) 200-9224 to schedule an on-site measurement.

Frequently Asked Questions - VLX 100 Double Swing / French Door

What is the lead time for the VLX 100 Double Swing / French Door?
Lead time runs roughly 4 to 6 weeks from the day you approve the order and we take final measurements. Custom finishes and laminated glass can add a week or two. We place the order the day you sign, and we schedule your installation around the delivery date so the door doesn’t sit in a warehouse. Call (386) 200-9224 and we’ll give you a current lead-time estimate for the exact configuration you want.

Does the VLX 100 qualify for energy tax credits?
It can, depending on the glass package you select. Low-E glass with the right NFRC ratings has qualified for federal energy tax credits in certain years. We’ll give you the NFRC performance data for your configuration, and you or your accountant can check current IRS guidance. What we can tell you with certainty is that a Low-E VLX 100 will reduce your cooling load in Palmetto Bay compared to a clear-glass door. Call (386) 200-9224 for the exact ratings on the configuration you’re considering.

What warranty comes with the Double Swing / French Door?
The VLX 100 carries a manufacturer’s warranty through ViewLux, and TruePane Windows & Doors backs our installation with a separate workmanship warranty. The manufacturer’s warranty covers defects in materials and factory workmanship. Our installation warranty covers the labor and the seal, the things that go wrong when a door is not set level, plumb, and square. If the door ever sags or binds due to an installation issue, we come back and fix it. Call (386) 200-9224 to discuss the full warranty terms for your specific project.

Can I customize the size?
The VLX 100 handles openings up to 96 inches wide, which covers most double French door applications in Palmetto Bay homes. If your rough opening is smaller, we work down from the maximum. If your opening is wider than 96 inches, that’s a conversation about sidelites or a different configuration. We do not cut corners to force a product into an opening it wasn’t engineered for. Bring us your measurements, and we’ll tell you honestly what fits. Call (386) 200-9224 for a free measurement.

How do I maintain aluminum frames?
Aluminum needs very little. Wipe the frames down with mild soap and water two or three times a year, and clean the track and threshold with a soft brush to keep debris out of the weather seal. Check the weather gaskets annually for cracks or gaps. The multi-point lock benefits from a light silicone lubricant on moving parts once a year. In Palmetto Bay’s coastal air, rinse the frame after salt spray events to prevent any pitting of the finish. If you ever see condensation between the glass panes, that’s a seal failure and it’s covered under warranty. Call (386) 200-9224 if you spot anything unusual and we’ll walk you through it.

Get a Quote - VLX 100 Double Swing / French Door in Palmetto Bay

Let’s get the numbers right. Call TruePane Windows & Doors at (386) 200-9224 to schedule a free on-site measurement. We’ll come to your Palmetto Bay home, take precise opening measurements, talk through glass and finish options, and give you a written line-item quote, no surprise change orders. The quote is free. The conversation is free. Call today and let’s get this door ordered.

Written by the team at TruePane Windows & Doors, authorized ViewLux installation partner serving Palmetto Bay, FL.
